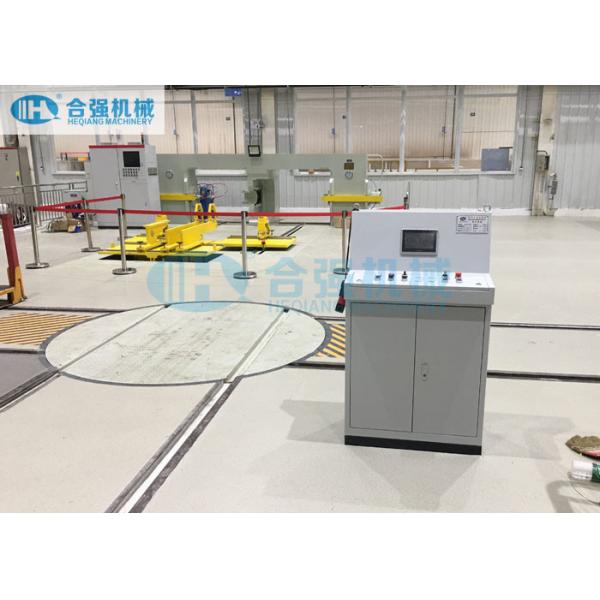

Electric Wheelset Turntable With Diameter 2500mm

Electric Wheelset Turntable With Diameter 2500mm Turning angle: each 90 degree

Turntable Application:
The Electric Wheelset Turntable is mainly used for transferring the wheelset on crossing track in the workshop. The operation is electrically controlled on the console or by remote. Turning angle: each 90 degree or 180 degree.

Technical Parameters:

(*Above parameters are indicative and can be modified as per customer's requirement.)

Main Features of the railway turntable:

• The wheel set turntable is used to transfer the wheelsets on the crossing tracks.
• The turntable is mainly composed of anti-slip patten plate, turntable body, centering device, slew bearing, positioning and locking deivce, castors and control console.
• The wheelset turntable is equipped with ant-friction castors for rotation and support for ease of operation.
• The operation of turntable is controled on the console or by the remote.
• The turntable can be turned in clock wise or counterclock wise and will stop at any 90° position as per required.
• The Turntable is suitably robust for forklift traffic (3 t forklift).
• Pit foundation required for installation.
• The turntable is overall steel structure.

Technical Documents:
The following technical documents will be supplied along with the turntable when delivery in 3 hard copy and 1 soft copy in English language:

• Operating and maintenance instruction manual;
• General arrangement drawing, Foundation drawing.
• Electrical Schematic diagram.
• List of Spare parts and Special tool.
• Product certificate.

Cooperation contact:
If you are interested in our machines or any assistance required, please feel free to contact us for more information.
